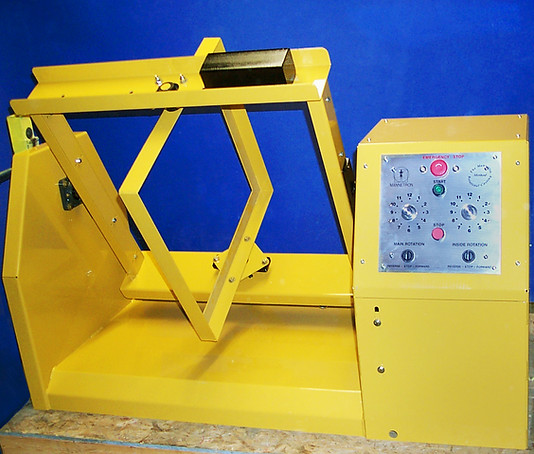

2' x 2' Rotational

Casting Machines

MOLD MOUNTING AREA

24 X 24 in  (60 X 60 cm)

MAXIMUM MOLD SIZE

Approx 32 in (81 cm) Diagonally Mounted

COST

USD $7, 500

FULL SPECIFICATIONS

REQUIREMENTS

FLOOR AREA

54 X 32 in (138 x 82 cm)

Bench Mount

CEILING HEIGHT

N/A

POWER/ELECTRICAL

120V 60HZ 10 Amp

Standard Grounded Receptacle

MOLD CAPABILITIES

MAX BALANCED MOLD WEIGHT

MAX UNBALANCED MOLD WEIGHT

MULTIPLE SIMULTANEOUS MOLDS

200 lbs (81 kg)

50 lbs (22 kg)

Yes

MAX MOLD SIZE

Approx 32 in (81 cm) Diagonally Mounted

MOLD MOUNTING AREA

24 x 24 in (60 x 60 cm)

FEATURES

MAIN ROTATION

1/4 HP DC Variable Speed

INNER ROTATION

1/4 HP DC Variable Speed

TWO-VARIABLE SPEED

Yes

MAIN ROTATION SPEED

INNER ROTATION SPEED

INDEPENDENT MOTOR ACTION

0-10 RPM (Maximum)

0-27 RPM (Maximum)

Yes (Forward, Stop, Reverse)

AUTOMATIC RAMP-UP START

AUTOMATIC RAMP-DOWN STOP

Yes

Yes

Yes

SAFETY FEATURES

EMERGENCY STOP

MAIN POWER KEY LOCK SWITCH

SAFETY MATS

Yes

Connection Provided as Standard (Safety Mats not Included)

SHIPPING

SHIPPING TERMS

FOB Shipping Point, Freight Collect

Buyer's Preferred Carrier

CRATING

Included in cost

SHIPPING DIMENSIONS

500 lbs (227 kg)

59 x 29 x 49 in (145 x 74 x 125 cm)

SETUP

Machine Ready to Run

Minimum Setup

PURCHASING TERMS

TERMS

WARRANTY

50% Down Payment (Purchase Order Required)

50% Final Payment prior to Shipping

Manufacturer's Warranty on Motors, Gearboxes, and Electronics 1 Year on Remaining Parts and Labor
